Cheapest Solar Panels for a Power Station (Cost per Watt)

Yes, if the voltage and plug match. Keep the total open-circuit voltage of panels in series under the station's max solar input voltage, and use an MC4 adapter cable for your station's port (XT60, Anderson or DC7909).

Divide the battery Wh by sun hours x 0.75. A 1,024 Wh station at 4 sun hours needs about 340 W, so 400 W of panels. A 2 kWh station needs about 700 W, so 800 W.

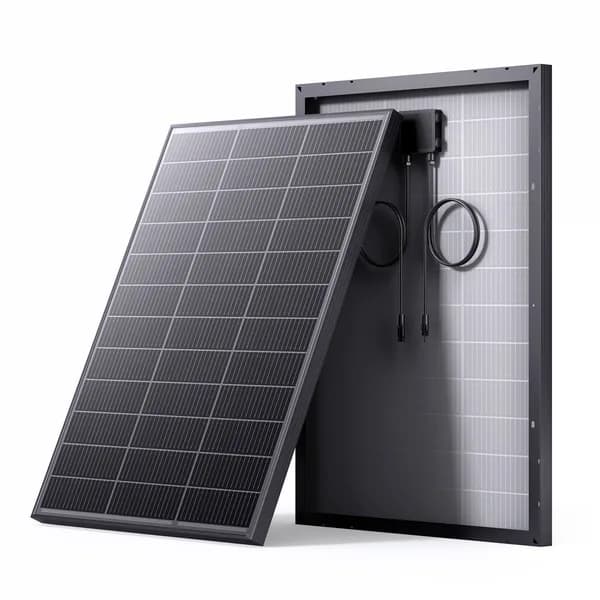

Yes, by about 40 percent per watt. Callsun's rigid 100 W panels are $0.62 a watt in a 4 pack, while its folding 110 W panel is $1.09 a watt. Rigid panels are heavier and need a place to sit.

About 1,200 Wh on a 4 sun-hour day after heat and charging losses, and about 750 Wh on a 2.5 sun-hour winter day.

Divide the battery's watt-hours by panel watts x 0.75. A 1,024 Wh station on 400 W of panels takes about 1,024 / 300 = 3.4 hours of full sun. A 2,074 Wh station on 800 W takes about 3.5 hours, as long as the panel watts stay under the station's solar input limit.

Series if the total voltage stays under the station's max solar input voltage, parallel if it would not. Series adds the panels' voltage and parallel adds their current. Add up the open-circuit voltage (Voc) on each panel's label and leave margin for cold weather, since the NEC 690.7 correction factors raise Voc by roughly 10 to 25 percent depending on how cold your site gets.

You can, but watts above the limit are wasted, because the station only draws up to its rated solar input. What you must never exceed is the input voltage limit, which can damage the port. Extra current is simply capped by most stations. A small oversize can keep the input closer to its limit on hazy or winter days, when panels make less than their rating.

Decades. The Callsun rigid panels here carry a 25-year output guarantee, IP68 tempered glass and a 5,400 Pa snow load rating. A 25-year output guarantee means the maker promises a minimum share of rated output over that time, so check the percentage on the warranty sheet.

Per watt-hour, yes. The Callsun 12V 100Ah battery stores 1,280 Wh for about a quarter less per watt-hour than the cheapest complete power station in our database. A bare battery needs a separate charge controller, an inverter and wiring you do yourself, so it suits an RV, shed or cabin 12V system, not a plug-and-go outage box.

They help when the back of the panel can see reflected light, such as over a light roof, concrete, sand or snow. The Callsun 200 W bifacial panels also have split cells that tolerate partial shade better. The extra output depends on the surface behind them, so size the system on the front rating and treat any rear gain as a bonus.
